Rigid Couplings

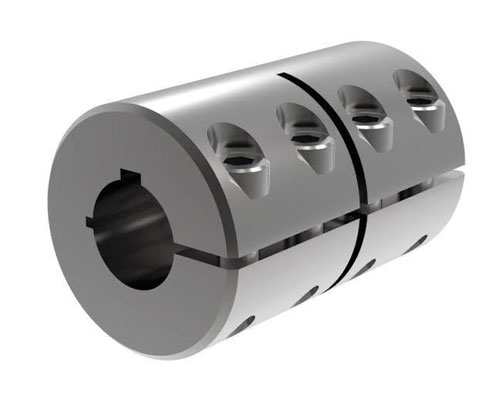

Clamped or compression rigid couplings come in two parts and fit together around the shafts to form a sleeve. They offer more flexibility than sleeved models, and can be used on shafts that are fixed in place. They generally are large enough so that screws can pass all the way through the coupling and into the second half to ensure a secure hold. Flanged rigid couplings are designed for heavy loads or industrial equipment. They consist of short sleeves surrounded by a perpendicular flange. One coupling is placed on each shaft so the two flanges line up face to face. A series of screws or bolts can then be installed in the flanges to hold them together.Because of their size and durability, flanged units can be used to bring shafts into alignment before they are joined together.

Examples of rigid couplings Edit Rigid couplings are used when precise shaft alignment is required; shaft misalignment will affect the coupling's performance as well as its life.
