WHAT IS A BELLOW COUPLING?

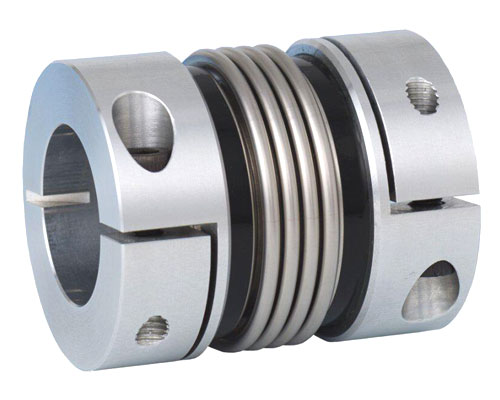

Bellows couplings are one form of flexible coupling with twin coupling ends called hubs capping a precision-engineered corrugated tube that serves as the coupling body. Bellows couplings are known for their exceptional torsional rigidity to accurately transmit velocity, angular position, and torque.
Metal Bellows products are used in a wide variety of industrial applications, and are designed to compress, extend, or bend in order to absorb axial and angular movement. Metal bellows are elastic vessels that can be compressed when pressure is applied to the outside of the vessel, or extended under vacuum. When the pressure or vacuum is released, the bellows will return to its original shape, provided the material has not been stressed past its yield strength. High-technology bellows technology of the 20th and 21st century is centered on metal bellows. These products bear little resemblance to the original leather bellows used traditionally in fireplaces and forges.
Bellows, welded or convoluted (formed) is used in a large number of industrial applications. Below you will find a few;
Load cells; A load cell deforms if a certain load in the form of a pressure or a strain is imposed on it. This deformation is then detected by a strain gauge through which a low voltage direct current is flowing. The change in voltage is detected and made visible on a control panel. A bellows is mounted over the gauge to protect it from outside influences.
Vacuum interrupters; For the switching of very high voltages in transformer stations sparks should be avoided. To prevent any danger that the surrounding atmosphere will explode, oxygen has to be removed in the area where the sparks occur. This can be done by sealing the spark area completely. Bellows are used to sealing such confined volumes and the inside of the bellows is evacuated or filled with an inert gas.
Mechanical seals; These are mostly used to close the inside of a pump from the outside world to prevent leakage. For that purpose, a mechanical seal is mounted on the pump shaft.
As the pump shaft is turning, there has to be a sealing element consisting of a stationary and a rotating ring. To enforce sufficient pressure on the two rings one is fitted with a spring. This spring can also have the form of a diaphragm (welded) bellows.
Pressure gauges: If the pressure of aggressive fluids or gases has to be measured, the gauge has to be isolated from the flow. For critical applications, a diaphragm sealing is used instead of a bourdon tube in the gauge. This gives more security than aggressive media will not leak.
THE DIAPHRAGM IS A SELF-CONTAINED SENSOR, TRANSMITTING THE DISPLACEMENT TO THE MEASURING DEVICE.
SENSORS:
In this application diaphragm or convoluted bellows are completely sealed and filled with a certain gas. Two electrical poles are penetrating the inside of the bellows. By varying the current of those two poles the temperature inside the bellows can be regulated. The expansion or contraction of the bellows is used as an actuator to control a certain movement.
Valve sealing: A bellows is used between the housing and the rising stem to seal the inside completely from the outside world. In Europe, this is of particular importance as regulations such as TA Luft prohibit any leakage.

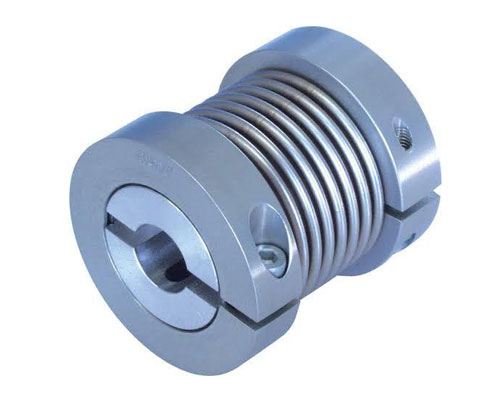

Couplings for stepper motors and servomotors: The flexible part, capable of compensating for misalignment is made by a bellows. It ensures that there is no angular positioning difference between the two coupling halves. This is essential if the positioning accuracy should be extremely precise.
Exhaust bellows: Running engines cause self vibration.
To compensate for those movements and temperature differences resulting in thermal expansion, bellows are used to connect the exhaust gas pipes to the funnel.
Piping expansion joint: In this application, bellows are formed in series to absorb thermal movement and vibration in piping systems that transport high-temperature media such as exhaust gases or steam.
Metal bellows are also used in other products and market segments, including medical applications like implantable drug pumps, to industrial actuators, to aerospace applications such as altitude sensors and fluid management devices (accumulators, surge arresters, volume compensators, and fluid storage). Metal bellows are also found in space applications, providing reservoirs with potable water as well as accumulators to collect wastewater.
